Qii-Jet TAH-343 High

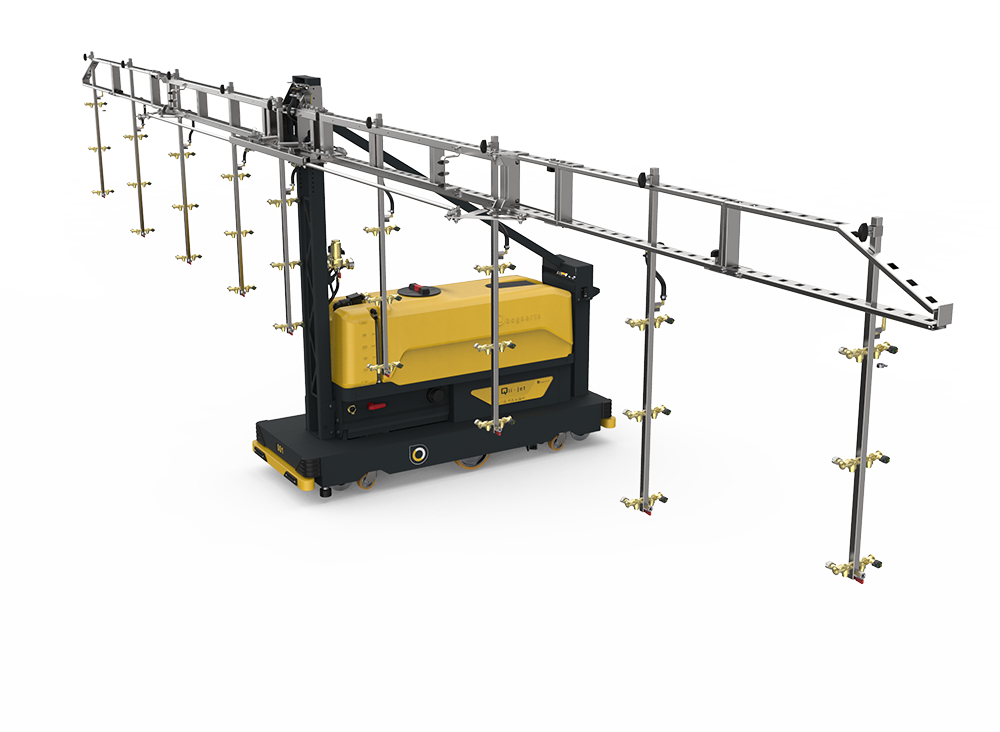

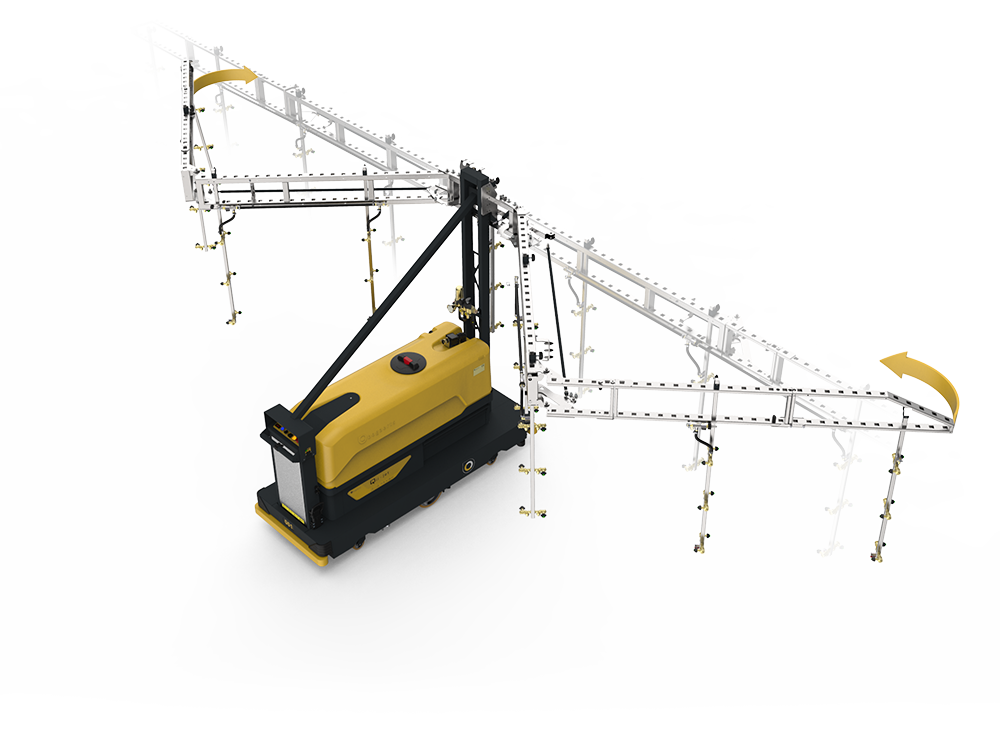

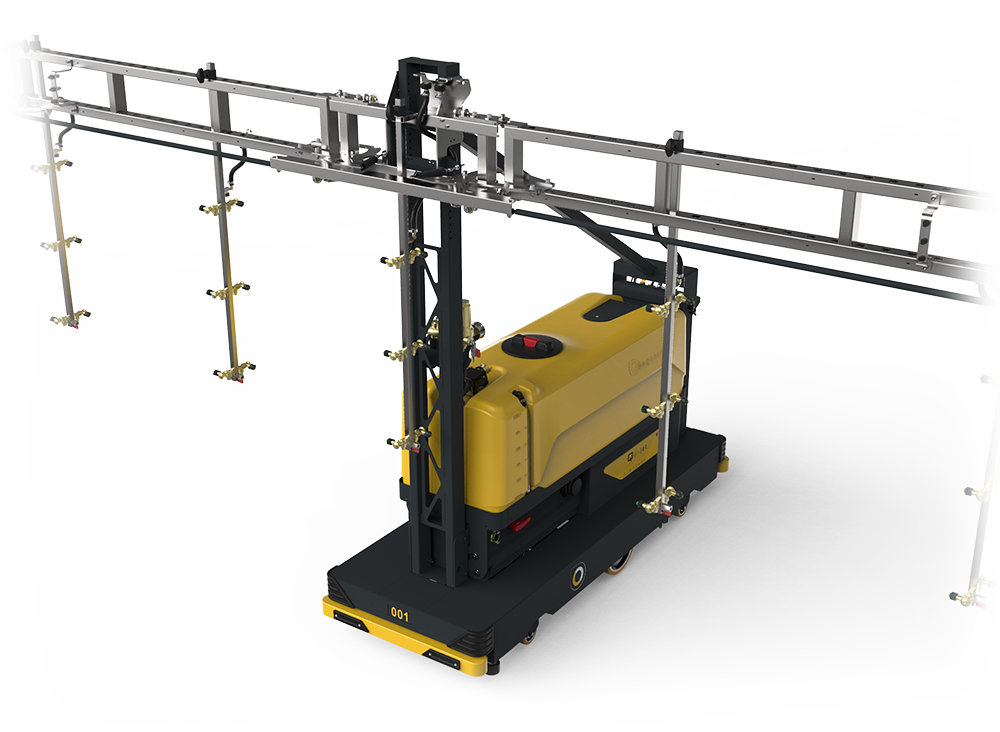

The Qii-Jet TAH-343 High, an automatic strawberry spraying robot is the newest redesign of our horizontal spraying robot with tank. The Qii-Jet TAH has a horizontal spray boom frame and vertical spray booms that point downwards for spraying plants on supported gutters. The Qii-Jet TAH is designed in such a way that treating multiple rows simultaneously is possible. The spray booms are designed to fold and unfold with great ease, requiring no tools or locking mechanisms.

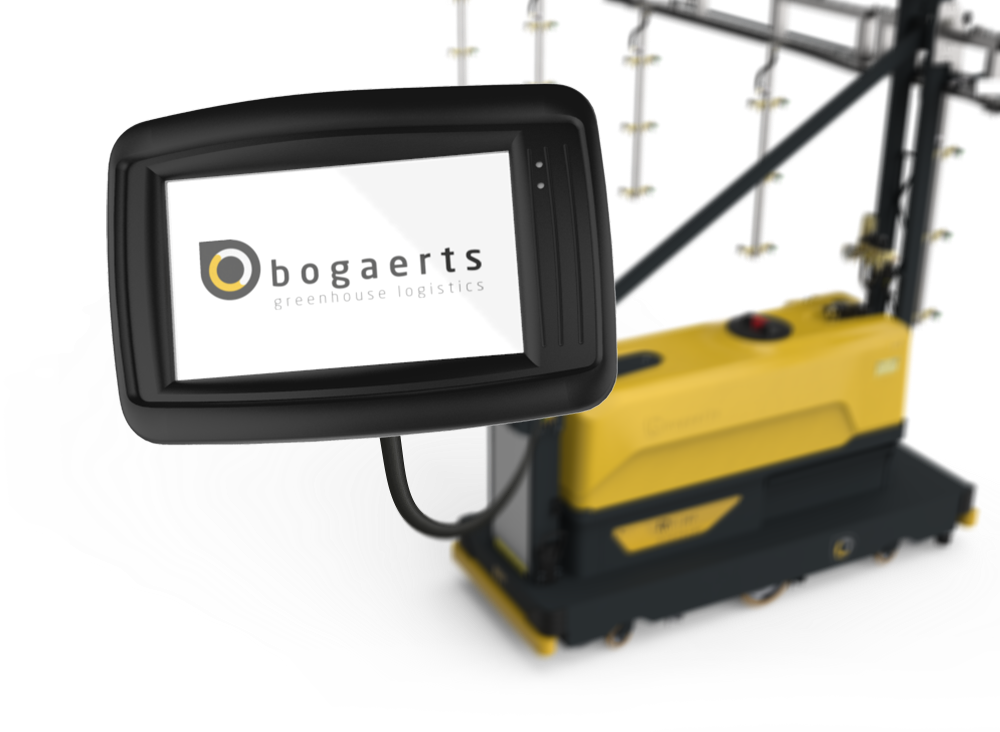

With the simple touch-screen and accessible user interface, you can create and optimize spray programs in no-time. You can specify the path length, spraying pattern, liters per hectare etc. and the Qii-Jet will do the rest for you. Thanks to the new AC motor the autonomy of the Qii-Jet is extended to 12 hours and less maintenance is required.

The spraying robot has an integrated liter counter for accurate spray liquid measuring and mixing. The tank unit is equipped with a 3-way valve to empty the tank, or switch to service mode. And the durable electronics are located in the front of the control panel for easy access. A switch has been added in the electrical cabinet which makes it possible to use the Qii-Jet without pressure measurement, for example for spray gun.

• Tank 300l
• Automatic speed and pressure calculation for desired liter/hectare
• Easy input of parameters in a separate touchscreen
• Equipped with 1 standard horizontal spray boom frame
  • Width 5100 mm
  • Manually foldable
  • Different horizontal extension lengths available
• Input of various programs possible
• Full-speed on pipe rails when not spraying - 110m/min
• Automatically sprays the full length of the path or a partial length of the path, depending on the program settings
• Separate button for selection of manual spraying
• Full-traction batteries 24V – 400Ah

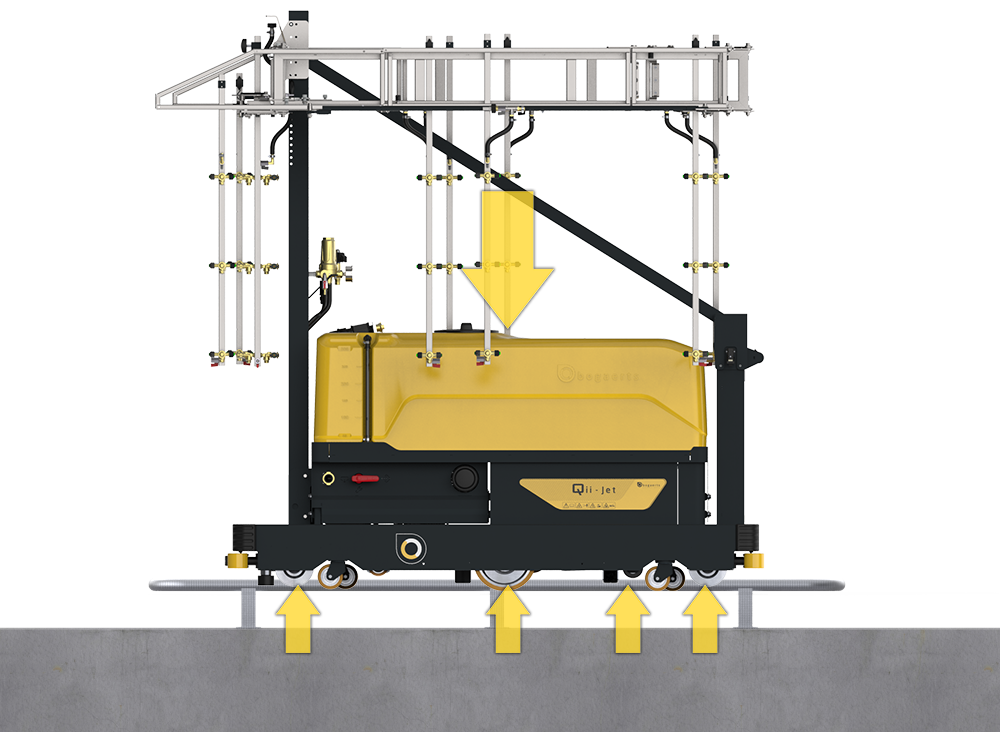

• Transmission on concrete path and pipe rails
• Self-centering swiveling wheels
• Tank with built-in injector agitator nozzle for turbulence of tank contents
• Frequency driven pump unit
• 12 hours autonomy
• Anti-corrosion treatment
